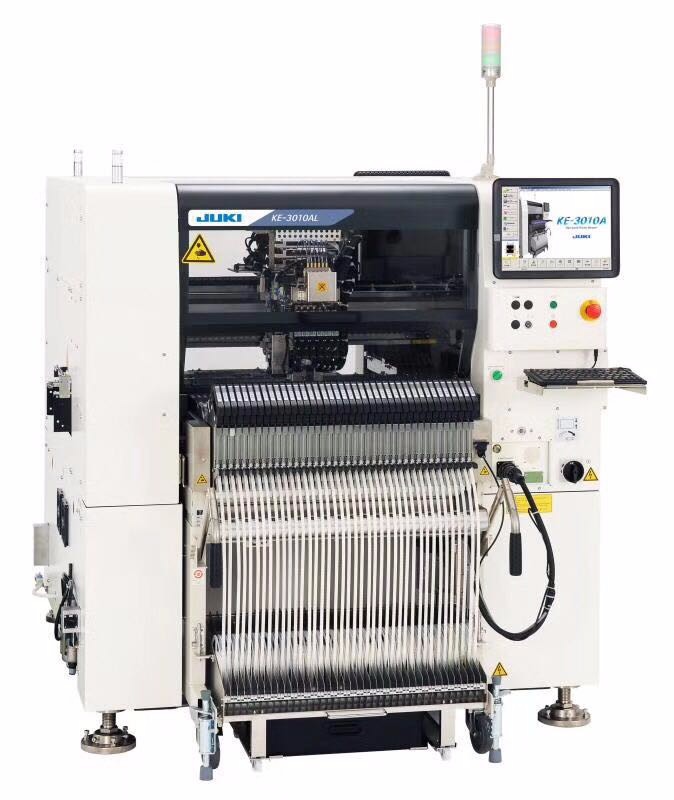

JUKI general high-speed placement machine KE - 3020 va, faster and higher quality. Improve production performance:
JUKI high-speed universal placement machine KE-3020VA, faster and higher quality. Improve production performance.
Product features of JUKI high-speed universal placement machine KE-3020VA:
Continuous improvement of the KE series products to achieve a flexible high-speed and high-quality electric production line structure.
Chip components
20,900CPH chip (laser recognition/condition)
17,100CPH chip (laser recognition/according to IPC9850)
IC components
9,470CPH (Image recognition/using MNVC)
0402 (English 01005) chip～74mm square element, or 50×150mm
KE-3020VA
Laser placement head × 1 (6 nozzles) + high resolution visual placement head × 1 (1 nozzle)
It adopts electric double-track feeder, which can load 160 kinds of components.
MNVC is installed in the standard configuration
High-speed continuous image recognition
Pallet high-speed supply components (option)
Corresponding to long substrates (option)
Corresponding to PoP implementation (option)
Specifications of JUKI high-speed universal placement machine KE-3020VA:
| Substrate size | L-Wide type substrate (510×360mm)*1 | ○ | |
| L-shaped substrate (410mm×360mm) | ○ | ||
| L-Wide type substrate (510×360mm)*1 | ○ | ||
| XL type substrate (610mm×560mm) | ○ | ||
| Long substrate (L-shaped substrate specification) *2 | 800×360mm | ||
| Long board (L-Wide type board specification) *2 | 1,010×360mm | ||
| Long board (XL type board specification) *2 | 1,210×560mm | ||
| Component height | 12mm specification | ○ | |
| 20mm specification | ○ | ||
| 25mm specification | ○ | ||
| Component size | Laser recognition | 0402 (British 01005) chip～33.5mm square element | |
| Withdrawal recognition | Standard camera | 3mm～74mm square element, or 50×150mm | |
High resolution camera (All are optional) | 1.0mm×0.5mm*3～48mm square element, or 24×72mm | ||
| Component placement speed | Chip components | condition | 20,900CPH |
| IPC9850 | 17,100CPH | ||
| IC component*4 | 9,470CPH *5 | ||
| Component placement accuracy | Laser recognition | ±0.05mm(Cpk≧1) | |
| Image Identification | ±0.03mm(MNVC±0.04mm) | ||
| Component placement type | 160 types (converted to 8mm tape (when using an electric dual-track tape feeder)) *6 | ||
