| Brand Name : | JUKI |
| Model Number : | RS-1R |
| Certification : | CE |
| Price : | negotiable |
| Payment Terms : | D/P, Western Union, T/T |
| Supply Ability : | 100 set/month |
| Delivery Time : | 3-7 days |
| MOQ : | 1 Set |

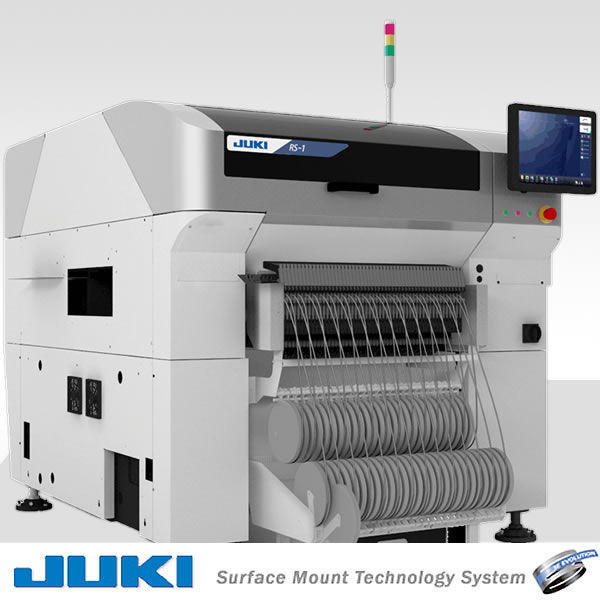

JUKI SMT machine RS 1 R The image recognition to realize high speed SMT by no pauses:
JUKI SMT machine RS 1R:
SMT Advantage:
Surface mount technology, SMT and its associated surface mount
devices, SMDs considerably speed up PCB assembly as the components
simply mount on the board.
Look inside any piece of commercially made electronic equipment
these days and it is filled with minute devices. Rather than using
traditional components with wire leads like those that may be used
for home construction and kits, these components are mounted onto
the surface of the boards and many are minute in size.
1. Good mechanical performance under shock and vibration conditions. (Partly due to lower mass, and partly due to less cantilevering.)
2. Lower resistance and inductance at the connection; consequently, fewer unwanted RF signal effects and better and more predictable high-frequency performance.
3. Better EMC performance (lower radiated emissions) due to the smaller radiation loop area (because of the smaller package) and the lesser lead inductance.
4. Fewer holes need to be drilled. (Drilling PCBs is time-consuming and expensive.)
5. Reasonable initial cost and time of setting up for mass production, using automated equipments.
Specifications:
| Model name | RS-1R | ||||
| Transmission style | standard | 150㎜ extension for import and export | Import and export 250㎜ extension | ||
| Substrate size | The smallest | 50×50㎜ | |||
| maximum | 1 while buffering | 650×370mm (one time splint) | |||
| 950×370mm (twice splint) | 1,100×370mm (twice splint) | 1,200×370mm (twice splint) | |||
| 3 when buffering | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| 25㎜ | 25㎜ | ||||
| Component size | 0201*1 (English system: 008004)～□74mm / 50×150mm | ||||
| Component placement speed (best condition) | 47,000CPH | ||||
| Component placement accuracy | ±35μm (Cpk≧1) | ||||
| Image Identification | ±30μm | ||||
| Component placement type | Up to 112 types*2 | ||||
| Device size (W*D*H) | 1,500×1,810×1,440mm | ||||
| Device weight | About 1,700Kg | ||||
